Product Details:
|
| Name: | Brass Ball Valve | Application: | HVAC Control |
|---|---|---|---|
| Material: | Brass | Size: | G 3/4" |
| Connection: | DN20 Female Thread | Kvs: | 9.86 |
| High Light: | 3/4" Motorized Ball Valve Actuator,24 volt valve actuators,three way valve actuator |
||

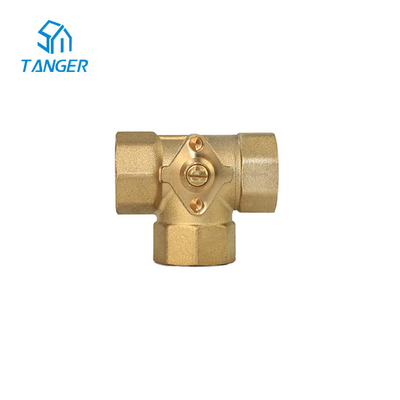

G 3/4 Inch HVAC Control 3-Way Brass Ball Valve Matching Valve
An electric actuator can regulate the flow of hot or chilled water with electrically actuated ball valves. It features a hot extrusion brass body. Electrically actuated ball valves have a compact size for installation in tight-fit locations.
Works with electric actuators for hot or chilled water.
Technical Specifications
| Model | VB18F20B |
| Valve type | 3-way |
| Kvs | 9.86 |
| Connection size | G3/4” |
| Material | Brass |
| Power source | Electric actuator |
| Connection type | Female thread |
| Max. differential pressure | 1 bar |
| Maximum static pressure | 10 bar |
| Temperature resistance | 5~100℃ |
