Product Details:
|
| Product Name: | HVAC Valve Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Housing Material: | Plastic | Warranty: | 1 Year |
| Color: | White | Motor Type: | Brushless Motor |
| Pusing Torque: | 100Nm | Valve Connection: | DN20 |
| High Light: | wireless electric actuator,air con actuator,actuator valve in hvac |
||
Product Description

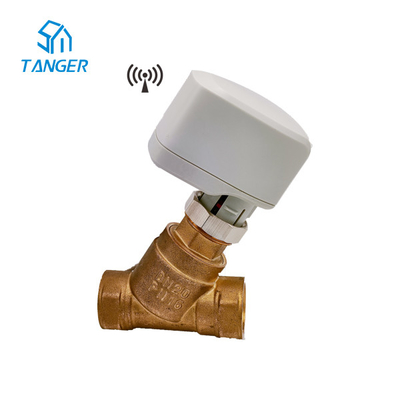

Wireless Electric Actuator HVAC Valve Actuator ZEB24R
A wireless receiver electric actuator is a brushless motor-driven intelligent control actuator with a built-in wireless module. It is mainly used to control the opening or closing of the valve in the heating or cooling system. After the actuator receives the disconnect or connects signal of the temperature controller, the actuator immediately performs the valve opening or closing action to control the room temperature by adjusting the water flow of the valve.
Fast reaction time, fully open, fully closed, only 25 seconds.
Technical Specifications
| Actuator model number | ZEB24R |
| Power supply | 230V AC or 24V AC/DC |
| Power consumption | 3W for running, 0.5W for maintain |
| Frequency | 50/60Hz |
| Running speed | 5s/mm |
| Pushing force | 100Nm (max. 150N) |
| Stroke | 4mm, 5mm, 6mm |
| Protection level | IP54 |
| Wirelss receiving frequency | 868MHZ (FSK) |
| Wireless receiving distance | 100m in open space |
| Cable | 2x0.75mm² white PVC 0.5M |
Wiring Diagram
Below are the type of valves to be used for actuators.
| Valve type | Thread | Kvs | Stroke/mm | Valve body pressure MPa | Closing differential pressure MPa | Medium temperature |
| VB10I20A | Rp 3/4" | 5.2 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| VB12I20A | Rp 3/4" | 4.5 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| DN20-AT2 | G 3/4" | 3.2 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| DN20-AT3 | G 3/4" | 2.2 | 3 | 1.6 | 0.1 | 0°C to 100°C |
| VB17D20A | Rp 3/4" | 3.2 | 3 | 1.6 | 0.4 | 0°C to 100°C |
| VB17D25A | Rp 1" | 3.8 | 3 | 1.6 | 0.4 | 0°C to 100°C |
Outline Dimensional Drawing
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
