Product Details:
|
| Product Name: | Electric Drive Linear Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Function: | Temperature Control | Thrust Force: | 100N |
| Stroke: | 5mm | Power Consumption: | 3W For Running |
| High Light: | actuator in hvac system,IP54 electric motor linear actuator 24 volt,hvac actuator |
||
Production Description

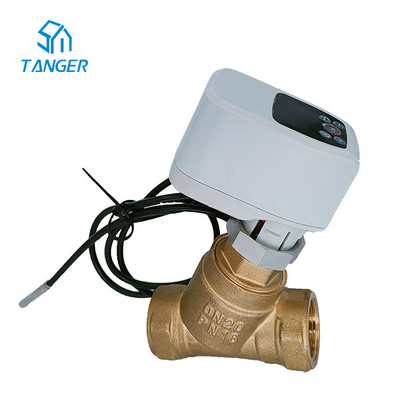

Temperature Control Type IP54 Electric Drive Linear Actuator HVAC Valve Actuator With Screen ZEB230WP
Electric actuator ZEB230WP is an intelligent temperature control actuator driven by a brushless motor. It is mainly used for temperature control of floor heating and return water. A proportional integral derivative(PID) control system is adopted to ensure real-time, fast, and stable regulation. When the return water temperature does not reach the set temperature, the actuator stepless adjusts the actuator opening according to the temperature difference, ensuring a constant return water temperature. The return water temperature is adjustable from 30 to 40℃.
Technical Specifications
| Actuator model number | ZEB230WP |
| Function | Temperature control |
| Power supply | 230V AC, 24V AC/DC |
| Power consumption | 3W for running, 0.5W for maintain |
| Standby power | 1W |
| Frequency | 50/60Hz |
| Thrust force | 100N (max. 150N) |
| Stroke | 4mm, 5mm, 6mm |
| Protection level | IP54 |
| Sensor size | ø4.5x40mm, black PVC 1M |
| Cable specifications | 2x0.752x0.75mm2, white PVC 0.5M |
| Ambient temperature range | -20 to 50 ℃ |
Below are the type of valves to be used for actuators.
| Valve type | Thread | Coefficient Kvs | Valve body pressure MPa | Closing differential pressure MPa | Medium | Medium temperature |
| VB10I20A | 3/4" | 5.0 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
| VB12I20A | 3/4" | 4.5 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
