Product Details:
|
| Product Name: | Capillary Thermostat | Temperature Range: | 90℃/90~110℃/100℃/300℃ |
|---|---|---|---|
| Differential: | Manual Reset;Temperature Decrease ≥20℃, Reset | Electrical Rating: | C-1: 0.5A/250VAC C-2: 16(4)A/250VAC |
| Capillary Length: | 1000/1500mm | Warranty: | 1 Year |
| High Light: | refrigerator thermostat capillary tube,fridge thermostat capillary tube,capillary tube type thermostat |
||

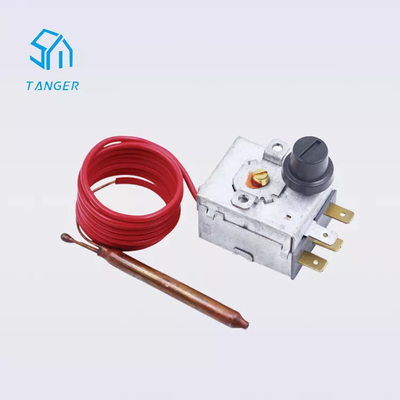

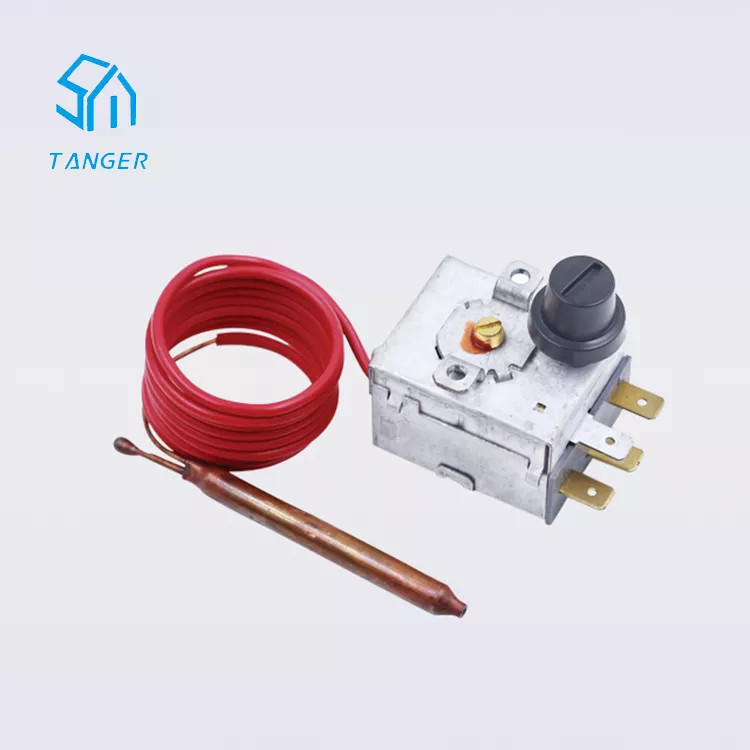

0.5A 250V/ 16(4)A 250V Manual Reset Capillary Tube Thermostat
Capillary Thermostat CA series
Product Desciption:
Capillary thermostats are used to control heating elements. Based on the set temperature, the sensor closes as the temperature rises and opens as the temperature falls.
Application:
Temperature control of washing machine, water heater, electric oven and other similar equipment with manual reset function and sensor leakage protection.
Features:
1. Bulb failsafe safety.
2. Adjustable functional temperature with customizable external knob.
3. Easy cabling.
4. Customizable functional and safety capillaries length.
5. Max functional temperature 300 °C.
6. With manual reset
Specifications:
| Model | CA series |
| Temperature Range | 90℃/90~110℃/100℃/300℃ |
| Differential | Manual reset;Temperature decrease ≥20℃, reset |
| Electrical Rating | C-1: 0.5A/250VAC C-2: 16(4)A/250VAC |
| Capillary Length | 1000/1500mm |
