Product Details:
|
| Product Name: | Heating Circulation Pumping Station | Application: | Underfloor Heating Temperature Controls |
|---|---|---|---|
| Supervisor Path: | 1'' | Supervisor Spacing: | 125mm |
| Pressure Difference: | 1bar | Working Pressure: | 5bar |
| KVS: | 5.5 | Storage Temperature: | -20~60℃ |
| Operating Temperature: | 2~80℃ | Max. Temperature Resistance: | 95℃ |
| Applicable Medium: | Water, Glycol Solution | Warranty: | 1 Year |
| High Light: | heater circulation pump station,heating circulation pumping stations,underfloor water heating thermostat |
||

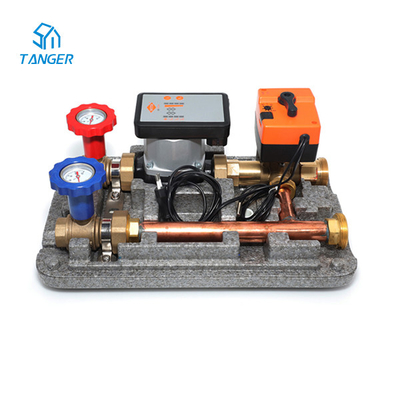

Heating Circulation Pumping Station TMA01A01
Specifications:
| Model | LS-25A |
| Interface Nut | G 1'' |
| Outer Interface Nut | G 1-1/2'' |
| Supervisor Path | 1'' |
| Supervisor Spacing | 125mm |
| Branch Pipe Spacing | 50mm |
| Pressure Difference | 1bar |
| Working Pressure | 5bar |
| KVS | 5.5m3/h |
| Pressure Test | 6bar |
| Storage Temperature | -20~60℃ |
| Operating Temperature | 2~80℃ |
| Max. Temperature Resistance | 95℃ |
| Actuator Temperature Range | 20~80℃ |
| Applicable Medium | Water, glycol solution |
