Product Details:
|
| Product Name: | Multibox | Application: | Underfloor Heating |
|---|---|---|---|
| Temperature Range: | 6~28℃ | Max. Admissible Static Pressure: | 1.0MPa |
| Max. Admissible Differential Pressure: | 0.1MPa | KVS: | 1.35 |
| Installation Depth: | 60mm | Connection Size: | G 3/4'' |
| Warranty: | 1 Year | ||
| High Light: | multi zone electric underfloor heating controlmulti zone electric underfloor heating control,multi zone electric underfloor heating,underfloor heating multi zone |
||
TCB Series Multibox

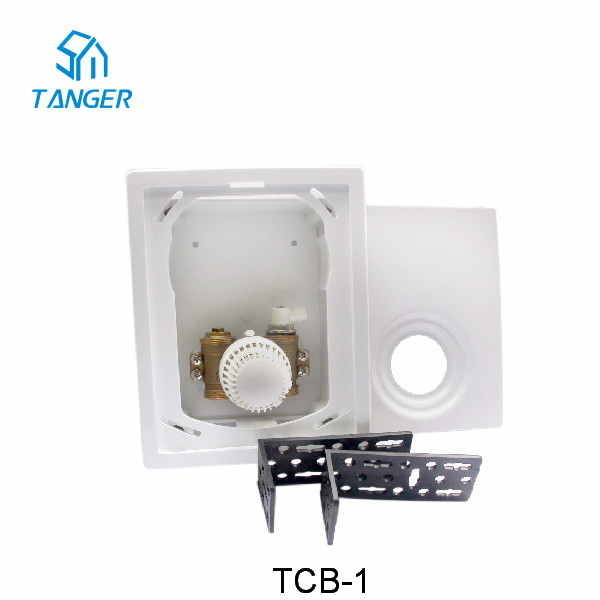

Multibox TCB-1
It's used for heating control for water heating system.
Specifications:
| Model | TCB-1 | TCB-2 | TCB-3 | TCB-4 |
| Temperature Range | 6~28℃ | 10~50℃ | 6~28℃/10~50℃ | 10~50℃ |
| Max. Admissible Static Pressure | 1.0MPa | 1.0MPa | 1.0MPa | 1.0MPa |
| Max. Admissible Differential Pressure | 0.1MPa | 0.1MPa | 0.1MPa | 0.1MPa |
| KVS | 1.35 | 1.35 | 1.35 | 1.35 |
| Installation Depth | 60mm | 60mm | 60mm | 60mm |
| Connection Size | G 3/4'' | G 3/4'' | G 3/4'' | G 3/4'' |
| Thermostatic Head | TF-6 | TF-23 | TF-6 & TF-23 | DF-110E & TF-23 |
