Product Details:
|
| Product Name: | Thermostatic Head With Remote Sensor TF-15 For Floor Heating Parts | Type: | Floor Heating Thermostats, Floor/ Under Floor Heating System |
|---|---|---|---|
| Application: | Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System | Valve Type: | Straight Thermostatic Valve |
| Housing Material: | Plastic | Color: | White Or Customized |
| Standard: | ISO9001 Certified | Warranty: | 2 Years |
| High Light: | thermostatic radiator valve sensing head,Remote Thermostatic Radiator Valve Head,Thermostatic Radiator Valve Head Capillary 1000mm |
||

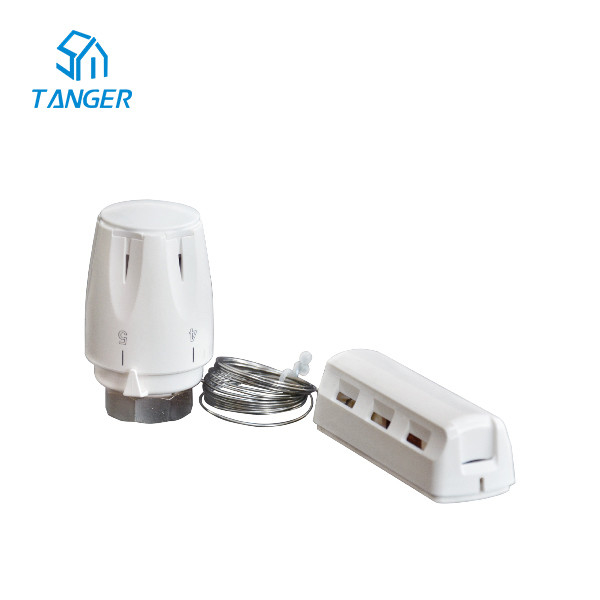

ermostatic Head with Remote Sensor for Floor Heating Parts
Product Description
Customized Product Characteristic, Floor Heating Parts Thermostatic Head with Remote Sensor TF-15 is a proportional controller without external energy requirements for the temperature-dependent control of warm air heaters, hot water generators, and heat exchangers, etc. The remote sensor is directly immersed in the medium. Alternatively, a sensor immersion pocket is available separately as an accessory. By the way, the plastic shell covers the thermal bulb helps the bulb senses the temperature better.
Features
Long capillary tube
Long remote distance for temperature control
Fast response time
More types for your selection
Technical Specifications
|
Model |
TF-15 |
|
Temperature range |
20-60 ℃ |
|
Maximum static pressure |
1.0 MPa |
|
Maximum differential pressure |
0.1 MPa |
|
Maximum temperature resistance |
80 ℃ |
|
Installation size |
M30x1.5 |
|
Hysteresis |
0.4 K |
|
Thermal bulb |
Φ9.5x110mm |
|
Capillary length |
1000mm/ 2000mm |
Packaging
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
