Product Details:
|
| Product Name: | Electric Drive Linear Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Housing Material: | Plastic | Warranty: | 1 Year |
| Running Speed: | 0.2mm/s (adjustable) | Pushing Torque: | 2500Nm |
| High Light: | 24vdc valves actuators,electric controls valves actuators ac 2500N,regulator valve actuator |
||
Product Description

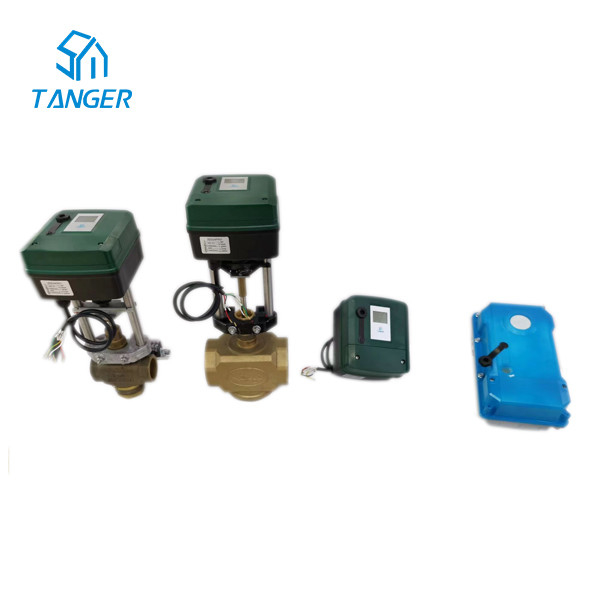

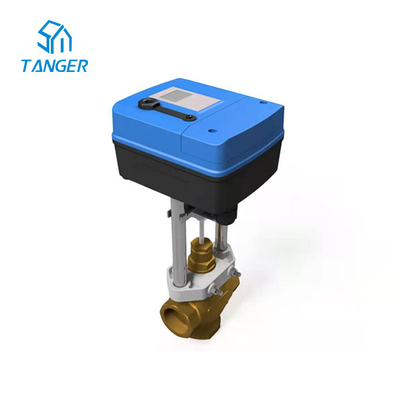

High Thrust 2500N HVAC Valve Actuators Electric For Control Valve IP54
Valve size: DN65 to DN125
Thrust range: 1000-2500N
Technical Specifications
| Actuator model number | ZED24FP03-2500 |
| Function | Adjustment with feedback |
| Power supply | 24V AC/DC |
| Frequency | 50/60Hz |
| Power consumption | 7W for running, 1W for holding |
| Running speed | 0.2mm/s (adjustable) |
| Maximum thrust | 2500N |
| Maximum stroke | 65mm |
| Protection level | IP54 |
| Housing material | Flame retardant engineering plastics |
| Bracket material | Stainless steel |
| Base material | Stainless steel and power alloys |
Wiring Diagram
Installation Guild
Before any service work on the final controlling device is carried out, it is essential to isolate the electric actuator from the power supply (by unplugging the electrical cable if necessary). Any pumps in the part of the piping system must also be switched off and the appropriate slide valves closed (allow all components to cool down first if necessary and consistently reduce the system pressure to ambient pressure level).
The system must not be returned to service until the ball valve and the rotary actuator have been correctly reassembled following the instructions, and the pipeline has been refilled by professionally trained personnel.
FAQ
|
Q1: Are you a manufacturer or a trader? |
|
Q2: How are your product quality and warranty? |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? |
|
Q4: How long can I get the sample? |
|
Q5: What are the nearest ports of shipment? |
