Product Details:
|
| Product Name: | Capillary Thermostats | Application: | Home Appliance Parts |
|---|---|---|---|
| Type: | Home Appliance Tempeature Controller | Usage: | Household & IndustrIal |
| Power Source: | Electric | Temperature Range: | 50-300℃ |
| Electrical Rating: | 16(4)A/250VAC | Capillary Length: | 1000mm |
| High Light: | high temperature capillary thermostat 250VAC,high temperature capillary thermostat 300 Degrees,capillary bulb thermostat |
||

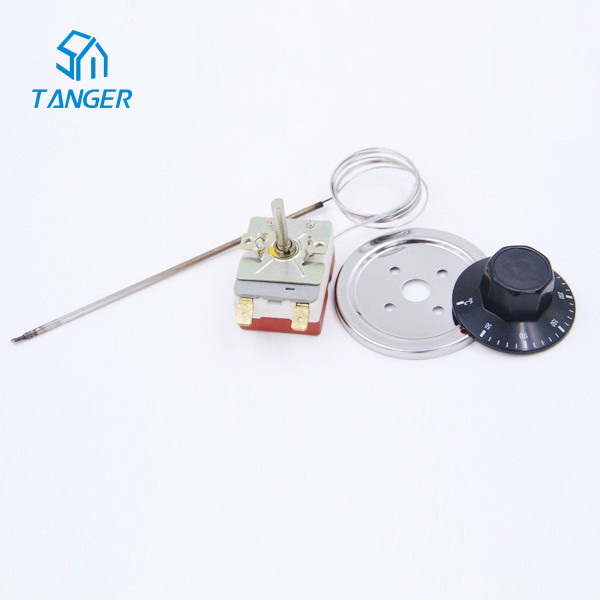

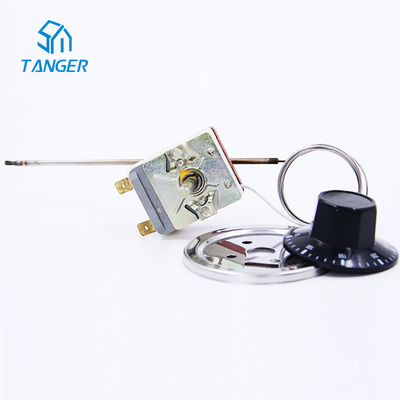

300 Degrees high temperature 250V AC 16(4)A Knob Adjustment Capillary Thermostats
300 Degrees High Temperature 250V AC 16(4)A Knob Adjustment Capillary Thermostats
Product Desciption:
Capillary thermostats are used to control heating elements. Based on the set temperature, the sensor closes as the temperature rises and opens as the temperature falls.
Application:
Temperature control of washing machine, water heater, electric oven and other similar equipment with manual reset function and sensor leakage protection.
Features:
1. Bulb failsafe safety.
2. Adjustable functional temperature with customizable external knob.
3. Easy cabling.
4. Customizable functional and safety capillaries length.
5. Max functional temperature 300 °C.
6. With manual reset
Specifications:
| Model | WPR-300E |
| Temperature range | 50-300℃ |
| Voltage | 230V AC |
| Current | 16(4)A |
| Capillary length | 1000± 50 mm |
| Maximum temperature resistance | Body 80℃, sensing element 350℃ |
| Differential | 6±3 ℃ |
| Contact resistance | ＜50mΩ |
| Insulation resistance | DC500V, >100mmΩ |
| Wiring diagram | S.P.S.T |
