Product Details:
|
| Product Name: | Temperature Control Multibox For Underfloor Heating Systems | Application: | Underfloor Heating Systems |
|---|---|---|---|
| Temperature Range: | 10~50℃ | Max. Admissible Static Pressure: | 1.0MPa |
| Max. Admissible Differential Pressure: | 0.1MPa | Connection Size: | G 3/4'' |
| High Light: | underfloor heating control unit,underfloor heating control unit,control box for underfloor heating |
||
Underfloor Heating Temperature Control Box With Electric Thermal Actuators Singe Room Control

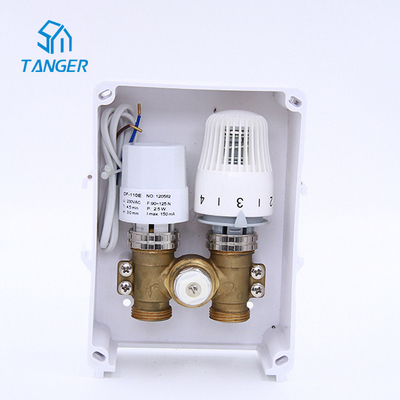

TCB Series Temperature Control Multibox TCB-4

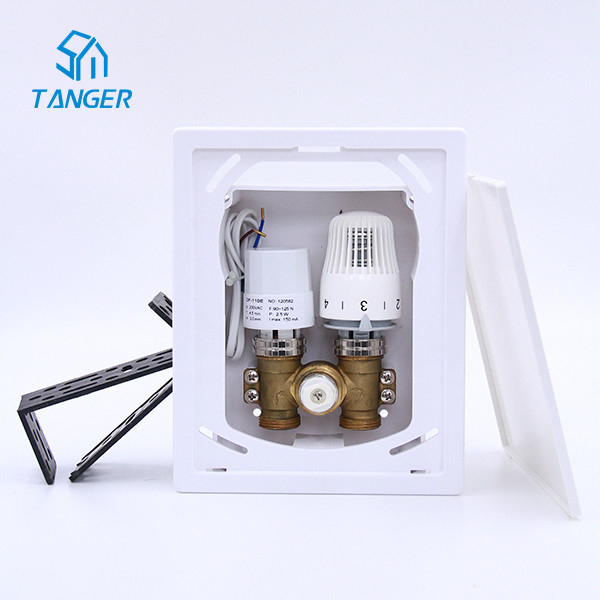

It's used to control the temperature of water flow back, installed with electric thermal actuator which is controlled by room thermostat. It consists of a flush box, cover plate, frame, black slide rail, thermostats, thermostatic valve, Electric Thermal Actuator, screws. The valve will be open as soon as the value is lower than the set limit.
Specifications
|
Model
|
TCB-1 | TCB-2 | TCB-3 | TCB-4 |
|
Temperature range
|
6~28℃ | 10~50℃ | 6~28℃/10~50℃ | 10~50℃ |
|
Max. admissible static pressure
|
1.0MPa | 1.0MPa | 1.0MPa | 1.0MPa |
| Max. admissible differential pressure | 0.1MPa | 0.1MPa | 0.1MPa | 0.1MPa |
|
Kvs
|
1.35 | 1.35 | 1.35 | 1.35 |
|
Installation depth
|
60mm | 60mm | 60mm | 60mm |
|
Connection size
|
G 3/4'' | G 3/4'' | G 3/4'' | G 3/4'' |
|
Thermostatic head
|
TF-6 | TF-23 | TF-6 & TF-23 | DF-110E & TF-23 |
