Product Details:
|
| Product Name: | Hydronic Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Engineering Plastic Materials | Heating Circuits: | 2-12 |
| Primary Connection: | G 1" | Maximum Tempeature Resistance: | 75 Degree C |
| Maximum Working Pressure: | 5 Bar | Zone: | 4 Zones |
| High Light: | Hydronic Floor Heating Manifold,4 zone underfloor heating manifold,ufh heating manifold |
||

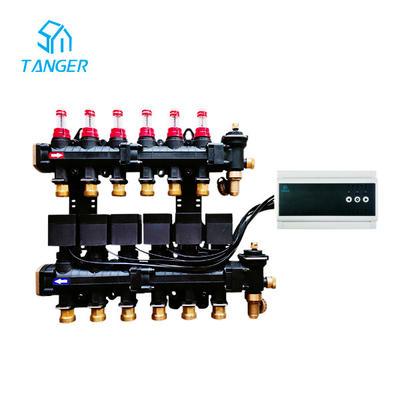

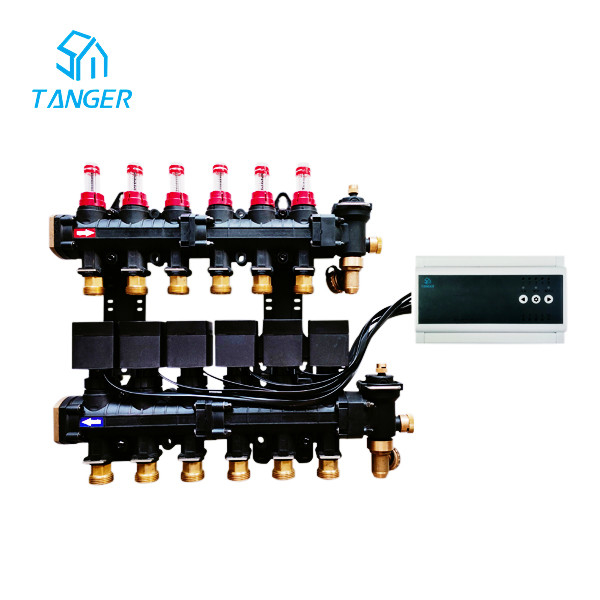

Hydronic Underfloor Heating (UFH) 2-12 Ports With Underfloor Heating Wiring Centre
Product Description
Underfloor heating manifolds act as the central control hubs of water underfloor heating system, managing water flow-rates, temperature regulation and pressure.
To provide thermally comfortable, energy-efficient heating to each zone of the system.
How does underfloor heating systems work?
Underfloor heating and cooling is a form of central heating and cooling that achieves indoor climate control for thermal comfort using dydronic or electrical heating elements embedded in a floor. Heating is achieved by conduction, radiation and convection.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring centre, electric thermal actuators, water pump, etc)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |
The manifolds come with many components that accumulate together to provide its superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap
Temperature display bar
Mounting bracket
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
