Product Details:
|
| Product Name: | Capillary Thermostats | Application: | Home Appliance Parts |
|---|---|---|---|
| Usage: | Household & IndustrIal | Power Source: | Electric |
| Electrical Rating: | 16(4)A/250VAC | Capillary Length: | 2500mm |
| High Light: | Knob adjustable capillary thermostat,adjustable capillary thermostat 2500mm,capillary type thermostats |
||

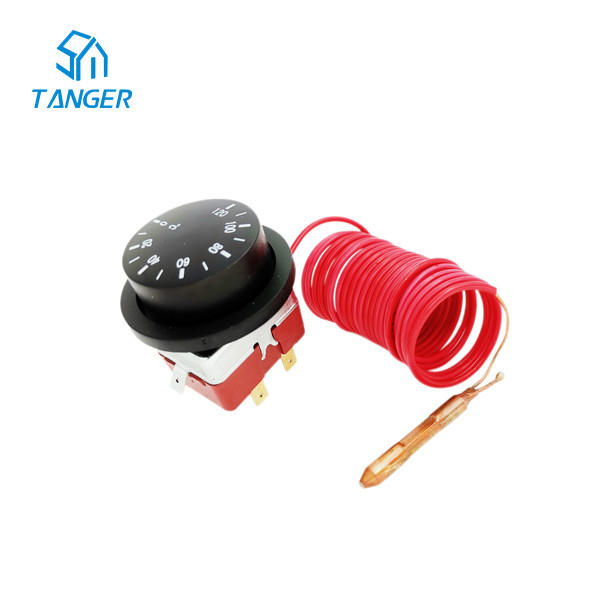

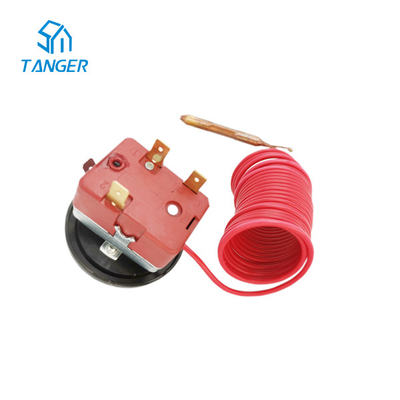

120 Degrees 250V AC 16(4)A Knob Adjustment Capillary Thermostats With Capillary Tube 2500mm
120 Degrees 250V AC 16(4)A Knob Adjustment Capillary Thermostats
Product Desciption:
Capillary thermostats are used to control heating elements. Based on the set temperature, the sensor closes as the temperature rises and opens as the temperature falls.
Features:
1. Bulb failsafe safety.
2. Adjustable functional temperature with customizable external knob.
3. Easy cabling.
4. Customizable functional and safety capillaries length.
5. Max functional temperature 300 °C.
Specifications:
| Model | G-0/120B |
| Temperature range | 0-120℃ |
| Voltage | 250V AC |
| Current | 16A |
| Capillary length | 2500± 50 mm |
| Maximum temperature resistance | Body 80℃, sensing element 350℃ |
| Differential | 6±3 ℃ |
| Contact resistance | ＜50mΩ |
| Insulation resistance | DC500V, >100mmΩ |
| Wiring diagram | S.P.S.T |
