Product Details:
|
| Product Name: | Radiator Valves | Application: | Radiators |
|---|---|---|---|
| Material: | Brass | Type: | Floor Heating Parts |
| Size: | 3/4" | Kvs: | 2.1 |
| High Light: | polished brass radiator valves,8mm rad valves,brass rad valves |
||
Product Description

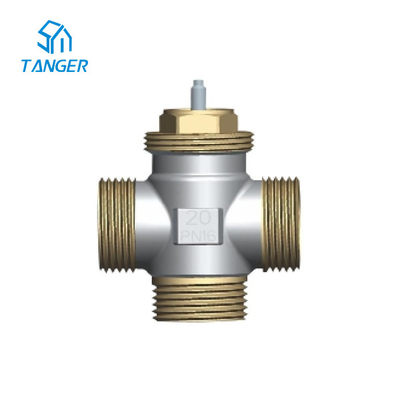

3-Way DN20 Radiator Valve For Underfloor Heating Systems Kvs2.1 is an 3-way valve for manual or automatic regulation of flow of heating medium through the heating device.
Thermostatic Mixing/Diverting Valves for use in hydronic heating systems as a 3-way mixing or diverting valve, controls loop temperature in radiant heating systems.
Technical Specifications
| Model number | D20-AT3 |
| Size | 3/4" |
| Maximum static pressure | 10bar |
| Maximum differential pressure | 1 bar |
| Temperature resistance | 5-100°C |
| Kvs | 4.5 |
More types of thermostatic radiator valves
Model | Size | Description | Maximum static pressure | Maximum differential pressure | Temperature resistance | Kvs | Remark |
| DN15-A2 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.3 | |
| DN15-B2 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | UK market |
| DN15-B3 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 2.0 | UK market |
| DN15-B4 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-AC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC3 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | chrome |
| DN15-BC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | chrome, UK market |
| DN15-AC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.14 | chrome,UK market |
| DN20-A2 | 3/4" | Straight | 10bar | 1bar | 5-100°C | 2.2 | |
| DN20-B2 | 3/4" | Angle | 10bar | 1bar | 5-100°C | ||
| DN20-AC | 3/4" | Lockshield | 10bar | 1bar | 5-100°C | 2.4 | |
| DN20-BC2 | 3/4" | Lockshield | 10bar | 1bar | 5-100°C |
Why us?
FAQ
| Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
Contact Person: michael
