Product Details:
|
| Product Name: | Thermal Safety Drain Valve | Type: | Water Heater Temperature And Pressure Relief Valve |
|---|---|---|---|
| Application: | Boiler Heating System | Valve Material: | Brass |
| Setting Temperature Range: | 97 Degrees | Connection Size: | G 1/2" |
| Maximum Operating Pressure: | 10 Bar | Medium: | Water |
| Seals And O-rings: | EPDM Rubber | Spring: | Stainless Steel |
| High Light: | heating temperature control on boiler,Boiler Temperature Control Sensor,temp pressure relief valve |
||

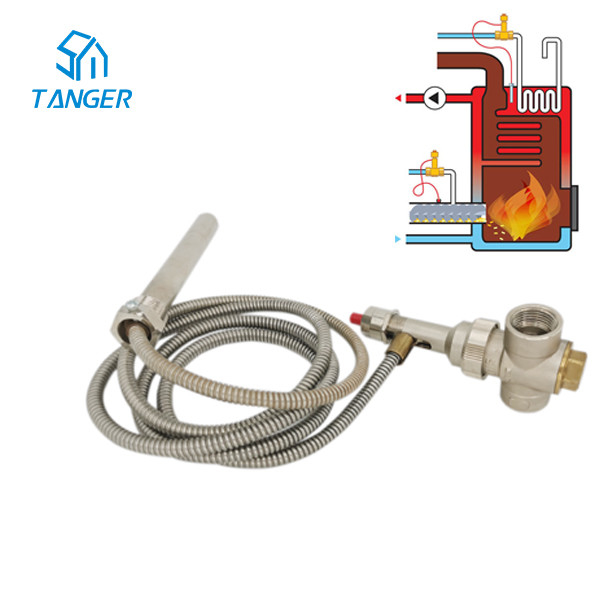

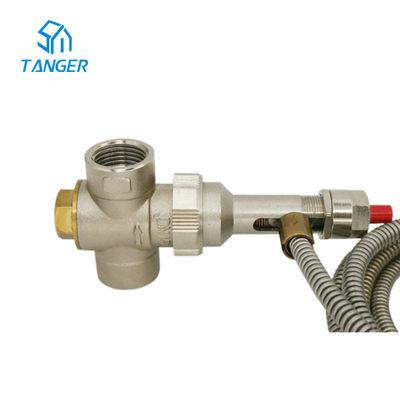

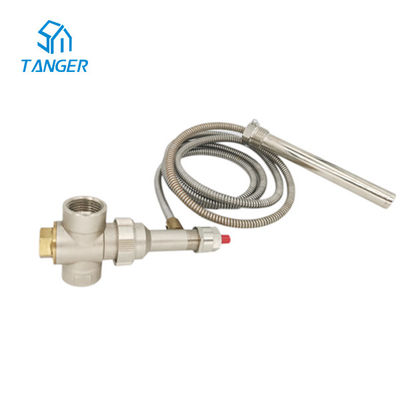

G1/2 Inch Thermal Safety Drain Series YC-1 Pressure Relief Valve Boiler Heating Systems
Product Description
Application with double sensor and test facility for boiler with integrated heater enclosed.
Valve size:1/2"
Relief temperature: 95°C
Capillary length:1500mm
Immersion problem 129mm
Double safety
If one fails, the other one will still operate with two heat-sensitive elements.
Tank systems
Solid-fuel boiler
Technical Specifications
| Model number | YC-01 |
| Inlet/outlet connections | G1/2" |
| Setting temperature | 97°C |
| Maximum operating pressure | 10 bar |
| Maximum fluid temperature | 107°C |
| Drain capacity | DP=0.1 bar, 600L/h |
